DIY Board and Batten Wall: A Bedroom Transformation

This simple DIY board-and-batten wall added structure, character, and a finished feel to our bedroom.

If you’re looking to add a touch of elegance to any room, a DIY board-and-batten feature wall is a beautiful place to start. This was our first project in our primary bedroom makeover, and this type of wall treatment completely transformed the space.

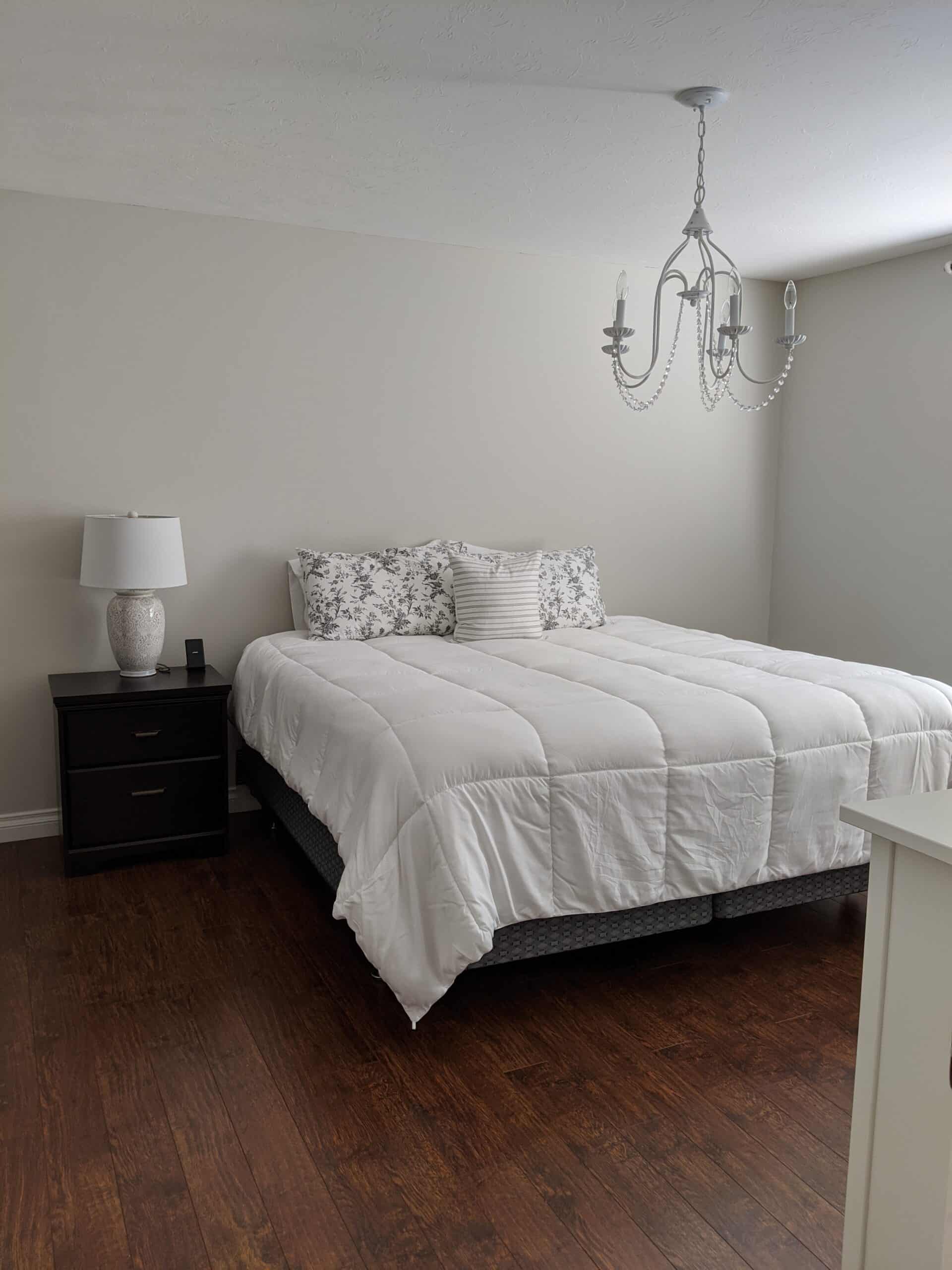

The Before: A Nursery Turned Primary Bedroom

When we bought our house, the main bedroom was originally a nursery. In those early days, we painted it quickly and moved in with what we had. The paint color we chose was Benjamin Moore Pale Oak. I love how this color looks warm and balanced in natural light.

We’d been planning to upgrade to a king-sized mattress for a while, and when the day finally arrived, we decided to take the opportunity to refresh the whole room. The goal was to create a cohesive, comfortable bedroom that felt like us.

Adding a board-and-batten feature wall behind the bed became the centerpiece of that vision.

Board and Batten Design Planning

There are endless board-and-batten designs out there (Pinterest can be a deep, inspiring place). I had a clear image in mind. I wanted something timeless and symmetrical, with enough wall texture to add interest without overpowering the room.

It was a long time coming, but thankfully, my husband, Roger, has a gift for transforming my ideas into reality. I’m grateful for his patience and skill with these big, hands-on DIY projects that start as sketches and turn into spaces we love.

A Board and Batten Tutorial

Supplies You’ll Need

• 1×4 primed MDF boards
• 1×8 primed MDF boards (for top and bottom — or 1×4 if you’re skipping crown molding)
• Miter saw, or circular saw
• Brad nailer + brad nails
• Compressor
• Measuring tape
• Paint (Benjamin Moore Simply White, satin finish)
• Paintbrush + roller
• Random orbit sander + sandpaper
• Hammer
• Screwdriver
• Paintable caulk + caulk gun

5 Basic Steps to Your Finished Batten Project

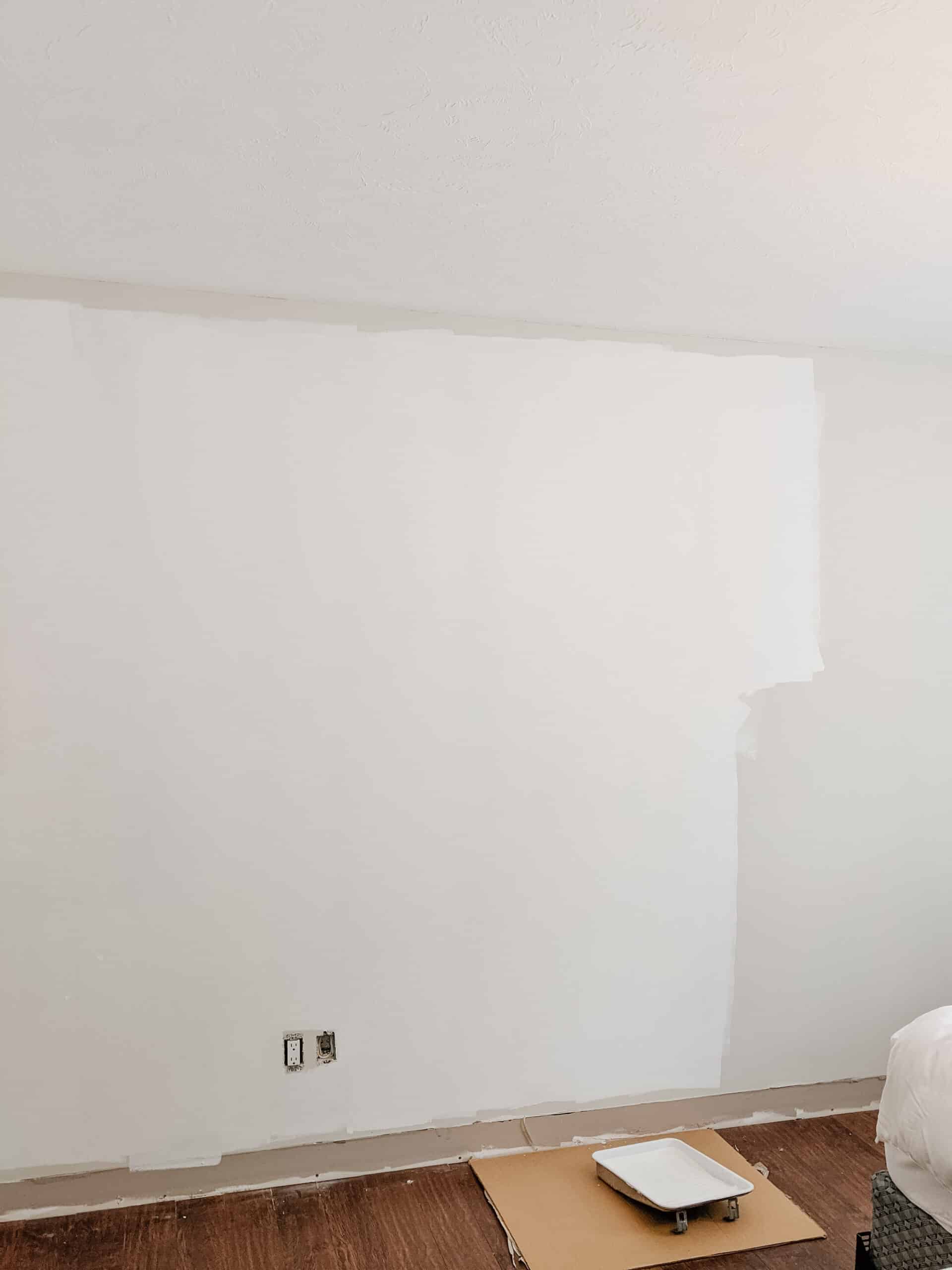

Step 1: Paint the Wall

Before installing any boards, the first step was to paint the blank wall the color we planned for the feature wall. This creates a clean backdrop and saves time on touch-ups later.

Related Post:

• Popular White Paint Colors: How to Choose the Right One

We chose Benjamin Moore Simply White in a satin finish. Around this time, our new lighting fixture arrived, helping define the clean, classic look we wanted for the finished space.

Wall color: OC-20 BM Pale Oak
Feature wall + trim: OC-117 BM Simply White

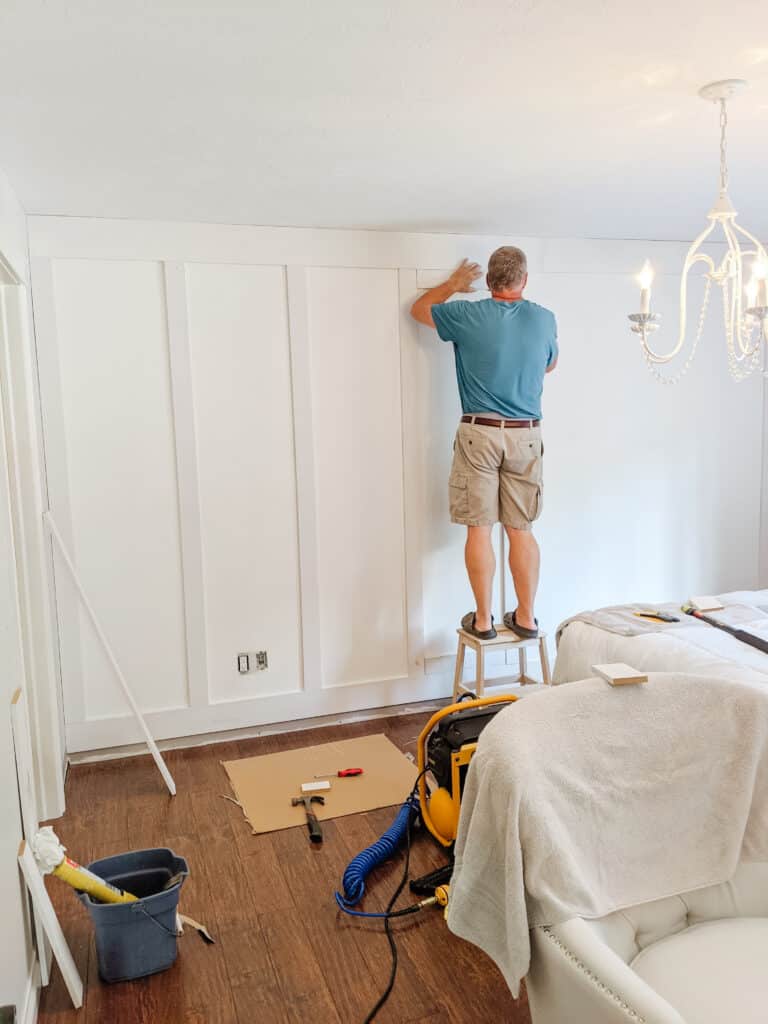

Step 2: Installation

With the paint dry, Roger measured and pre-cut all the horizontal boards to ensure precision. Using the miter saw with a stop block helped keep every piece consistent.

He then used those horizontal pieces to space the vertical boards evenly across the wall. Precise spacing is what gives board-and-batten its classic, tailored look.

To secure everything:

• Apply a thin strip of construction adhesive along the back of each board for extra hold.
• Use a nail gun to fasten them firmly to the wall.

Pre-measure and mark everything before nailing it. It saves time and keeps batten spacing even.

Step 3: Caulking, Sanding & Prep

Once all the boards were installed, Roger filled the nail holes and seams with paintable caulking. After the caulk dried, he sanded the boards until they had a smooth finish. This step makes all the difference once paint is applied.

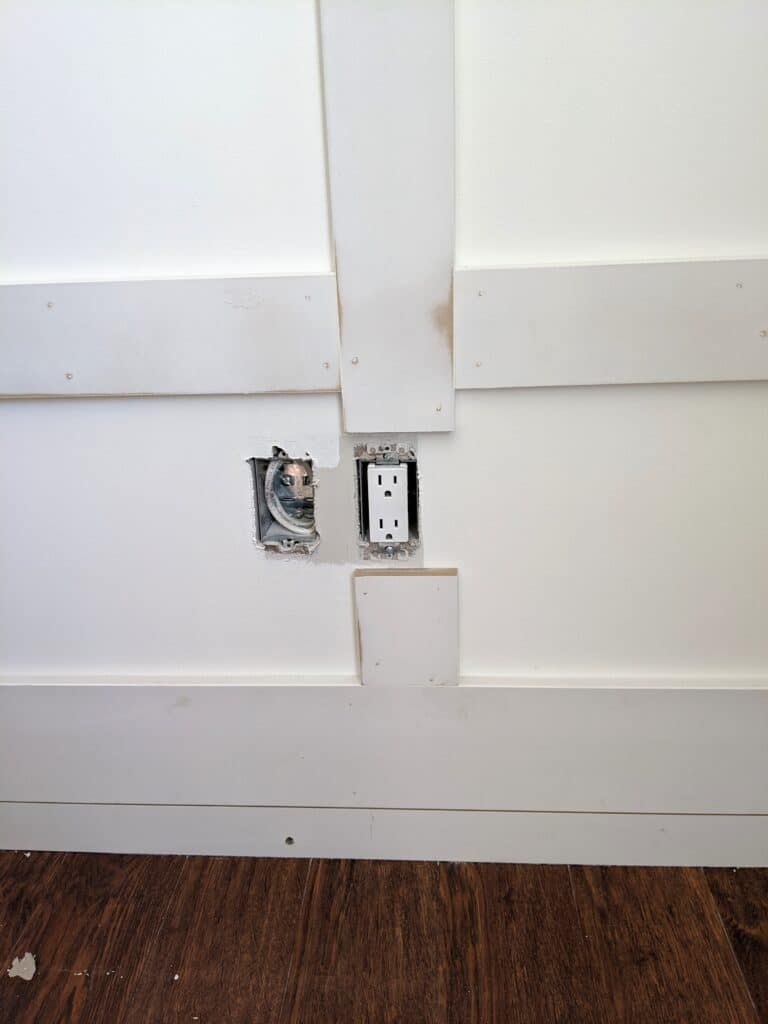

We did encounter one small challenge with the vertical battens: a receptacle that ended up partially behind the second-to-last vertical board. Instead of reworking the wall, we chose to work around it, knowing our nightstand would sit right in front of it. Real-life design solutions, right?

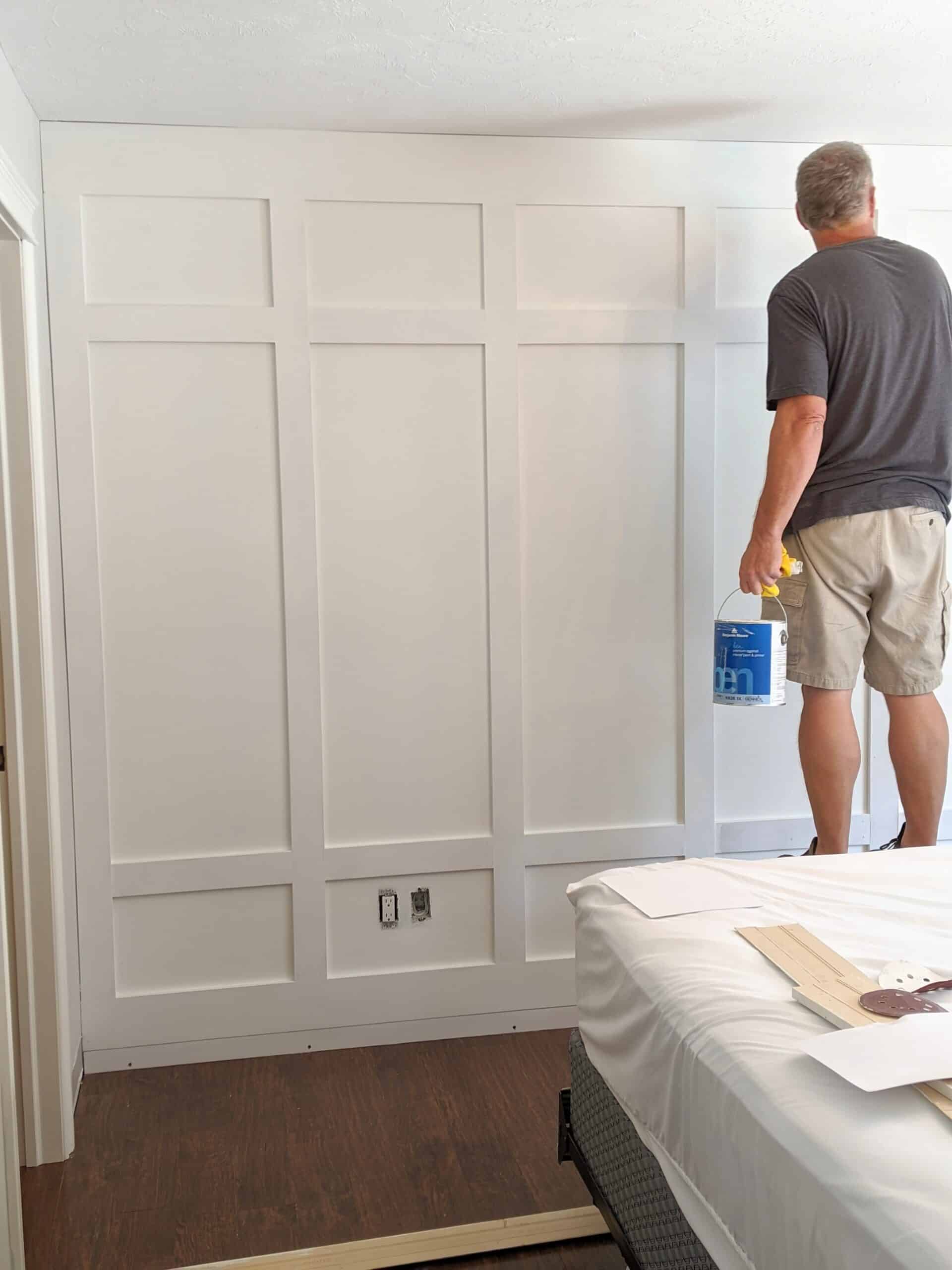

Step 4: Painting the Boards

After sanding, I painted the boards using the same paint color we’d used on the wall, Simply White. This kept the look cohesive and light.

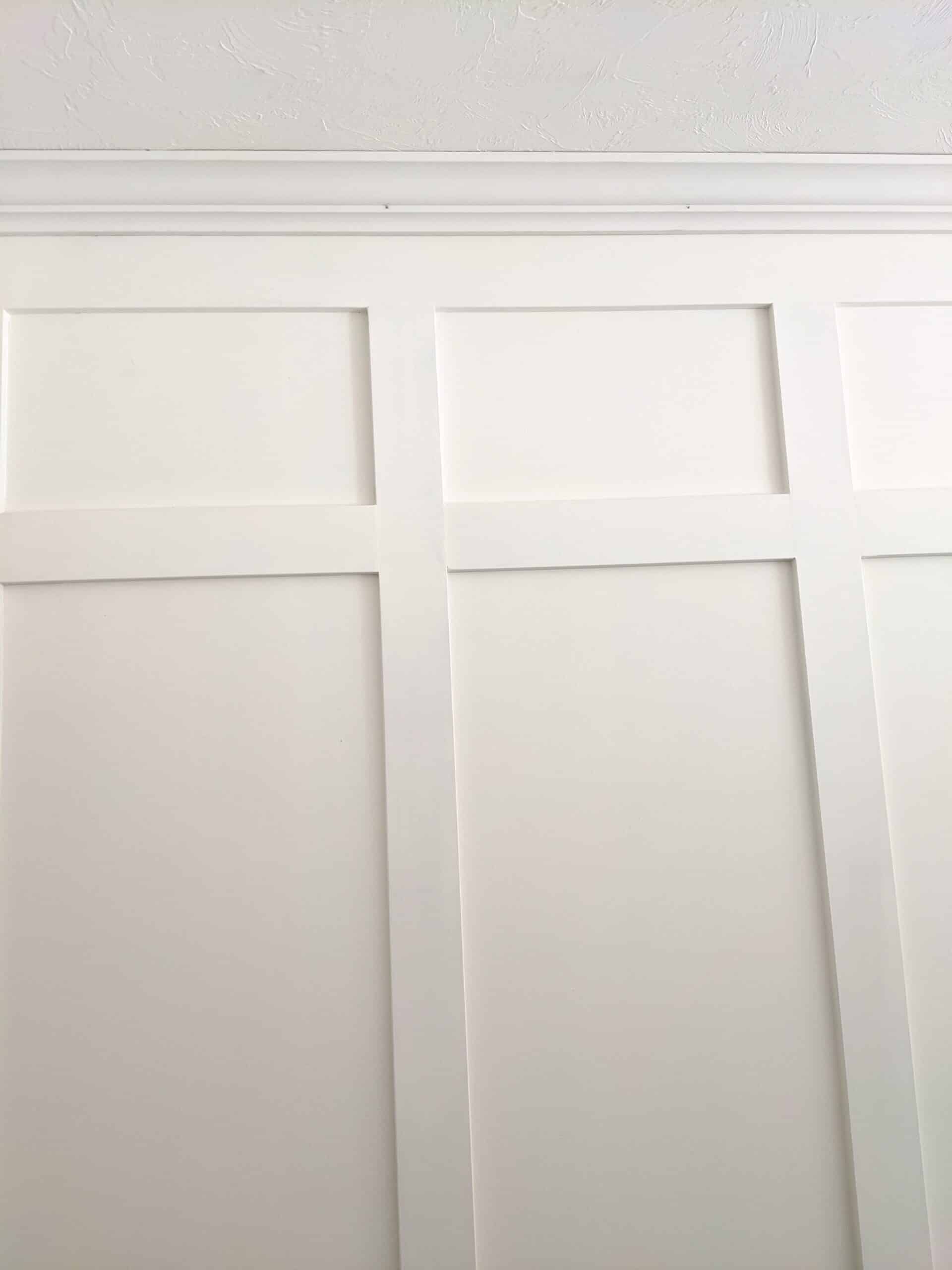

Step 5: Crown Molding (Optional, but Worth It)

Once the new bed was in place, we decided to add crown molding above the feature wall. This was a personal preference and purely for aesthetic reasons. It wasn’t necessary for completion, but it added just the right touch of traditional elegance. Sometimes the smallest details add the finishing touch to a project.

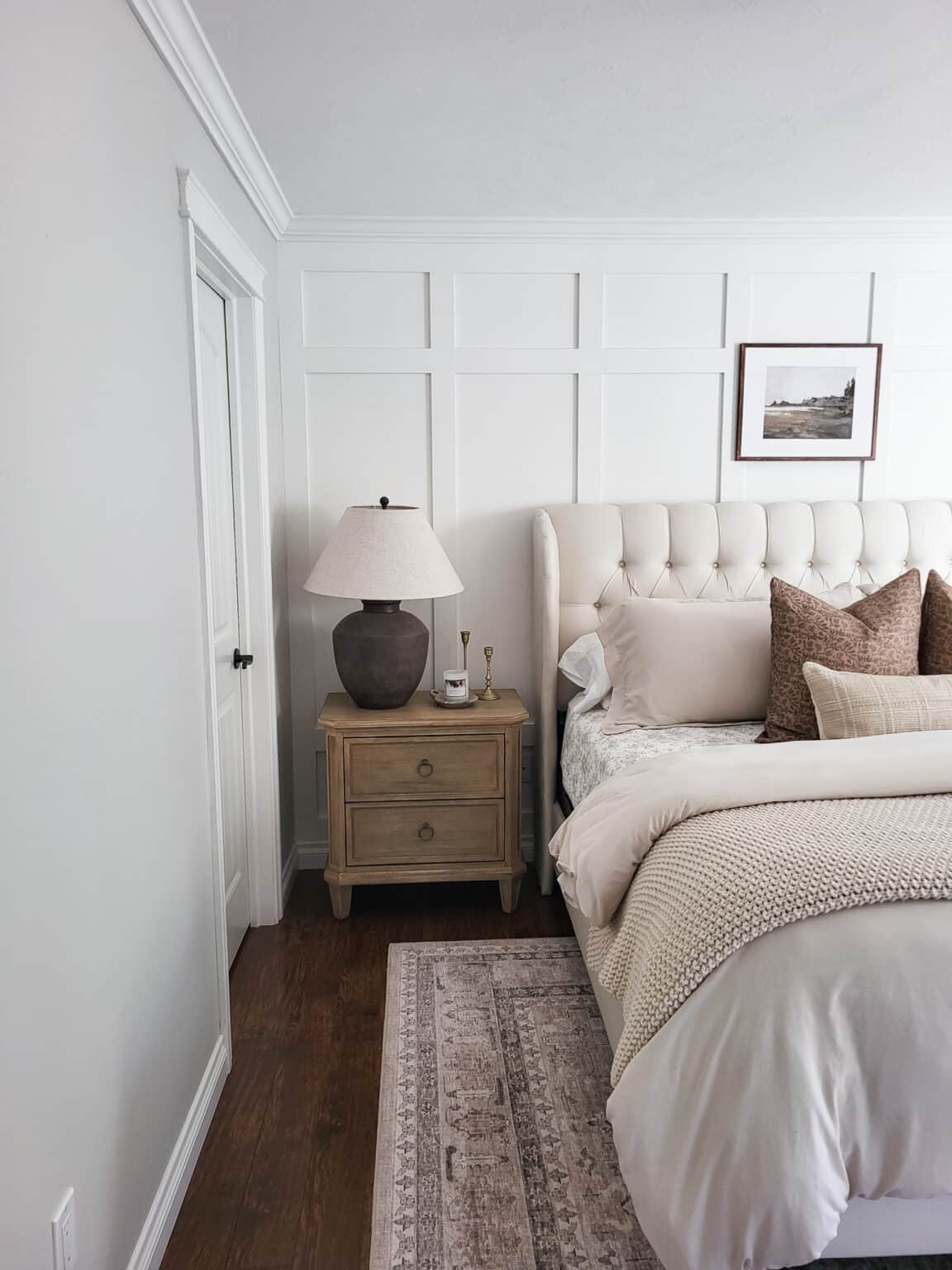

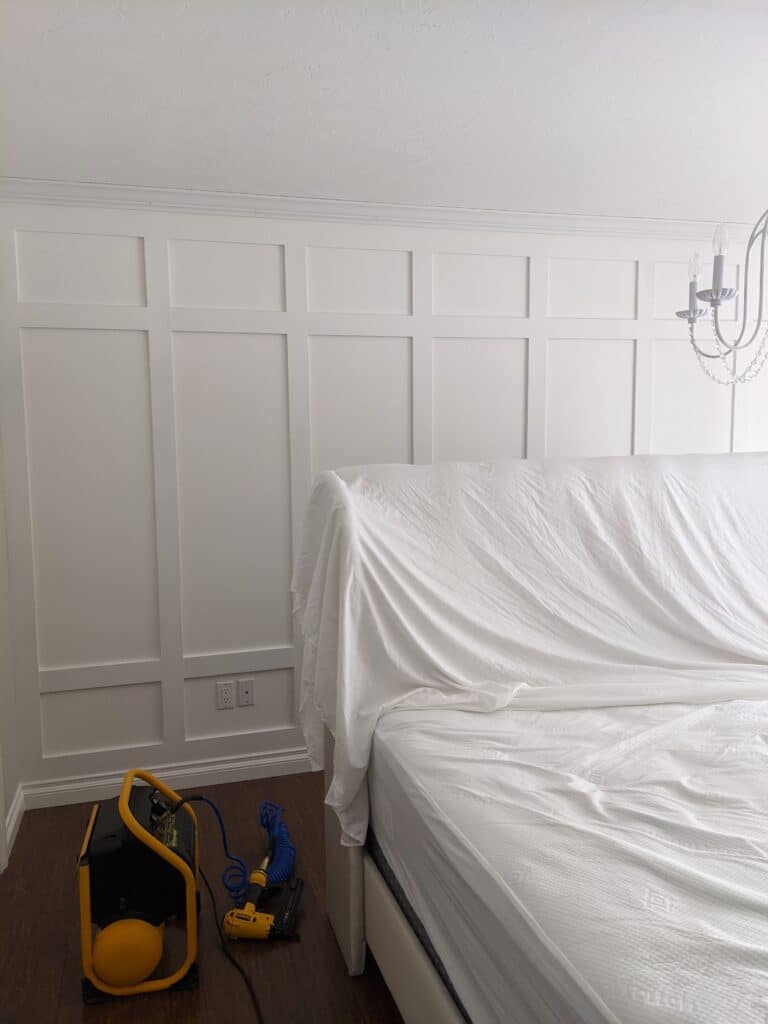

The Finished Wall

The finished board-and-batten wall added structure, depth, and a polished look to the room. It brought visual interest to the space without requiring new furniture or a layout change.

It’s one of my favorite DIY updates because it works with many styles and will continue to evolve as the room does.

As an additional note, we wanted to use our decorative baseboard to keep consistency on all four walls. The image shows a seamless transition between the bottom board and the installed existing baseboard.

You can also see the full primary bedroom reveal with all the paint colors, sources, and decor details. This batten wall remains one of our favorite DIY projects.

Related Posts

• DIY Bedroom Makeover: Calm Cozy Before & After
• How to Paint a Light Fixture (Fast, Budget-Friendly Upgrade)

If you’ve been craving more structure or depth in a room, a board-and-batten wall is a timeless place to start.

Leave me a note in the comments if you have a corner in your home you’ve been thinking about updating. Would you ever consider installing a batten wall treatment or another type of accent wall in your home? Would love to hear your ideas below.
